Shuriken JLF V2

SKU SHURIKEN-JLF-V2

***Pre-Order Only! Will ship out by end of May.***

Save 55% Save 55%
Original price $17.95
Original price $17.95 - Original price $17.95
Original price $17.95
Current price $8.00
$8.00 - $8.00
Current price $8.00

Please Note:

  • Compatible ONLY with 0.187in & 0.250in Omron (V, D2RV, & D3V Series) and Gersung (GSM-V) switches.
  • It is not compatible with the Sanjuk!

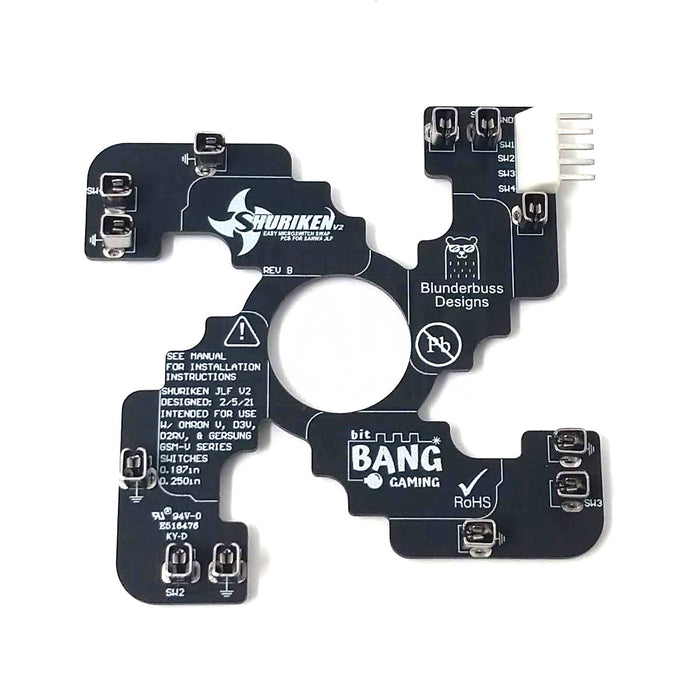

Replacing a switch on your Sanwa JLF PCB is tedious and daunting! We aim to make life a bit easier with the Shuriken JLF V2 PCB. It fits perfectly into an authentic Sanwa JLF stick (or clone) as it is designed to be a drop-in replacement.

Each switch can be replaced separately with no need for soldering and no need to replace a whole PCB that might have other functioning switches. You can swap out switches on the fly and even mix in different operating forces. The Shuriken JLF V2 PCB is specifically designed for the Omron V, D3V, and D2RV series switches, and Gersung GSM-V series switches. That comes out to 100+ switch part numbers that can be used!

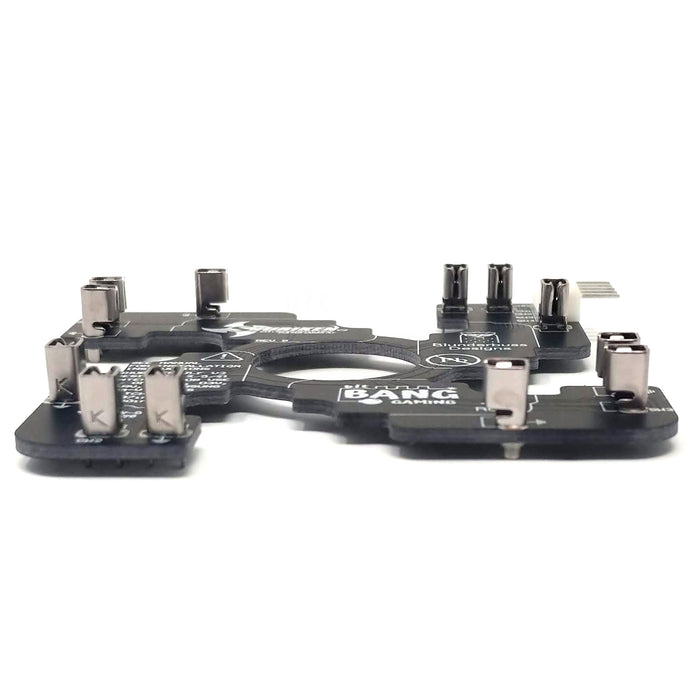

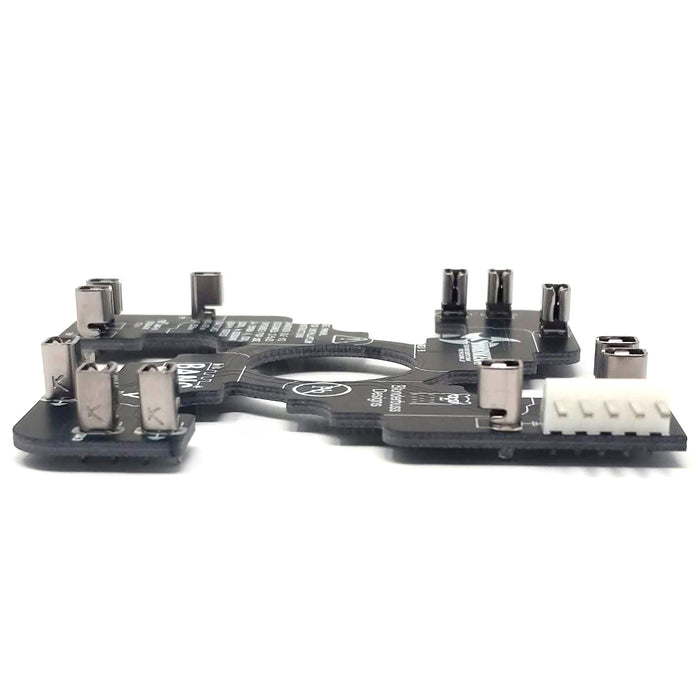

A 5-pin JST-NH connector serves as the connection port, just like in an authentic Sanwa JLF PCB.  The improvement from the Shuriken JLF V1 PCB is that there is now a 3rd terminal to allow for the D2RV switches which are of the "silent" type from Omron. The V1 also did not allow for 0.187in tab widths but with updated terminals, which are far sturdier, you can easily use a needle nose plier to nudge the terminal into position for 0.187in compatibility.

Note 1: The dimensions below are for reference only. Shuriken JLF PCB V2 has been designed to work with the Sanwa JLF lever.

Note 2: The Shuriken JLF V1 accidently became compatible with the Sanjuk V3. However, the Shuriken JLF V2 does not work the same as it uses different terminals and is therefore not compatible.

Mechanical Characteristics

Parameter

Specification

Board Length

3.000 in (76.20 mm)

Board Widthp

3.000 in (76.20 mm)

Nominal Board Thickness

0.062 in (1.57 mm)

Surface Finish

ENIG, 2U

Solder Mask Color

Black

Silkscreen Color

White



Thermal Characteristics

Parameter

Specification

Operating Temperature

0°C to 60°C



ELECTRICAL

Compatible Switches: The Shuriken JLF V2 has been designed to be compatible only with 0.187in & 0.250in Omron (V, D2RV, & D3V Series) and Gersung (GSM-V) switches.

Sometimes someone will discover a switch is compatible. If you do happen to find one, please let us know! Since the V2 has much stronger terminals, it is possible to bend and even twist them to allow for another switch we didn’t design around to function.

INSTALLATION

No external power is required to operate the Shuriken JLF V2 PCB. Simply replace the stock PCB with the Shuriken with the same connection and orientation scheme. Removal of the board only requires you to remove the gate via four plastic clips as shown below.

Standard procedure for installing a switch onto the clips requires to first place the switch on the Shuriken JLF V2 and then place the entire board assembly onto the body of the JLF lever. Then push down and/or adjust them until they line up with the pegs on the JLF lever body. Compared to the Shuriken JLF V1, the Shuriken JLF V2 clips are much stronger and therefore do require more force on an initial install to mount into place. Once everything is lined up, place the gate over which will also have pegs that line up with the switches.

Take note of the orientation of the stock PCB and where its output connector was pointing. This is because the orientation will change the pinout because of how the lever will actuate the microswitches.

In the case of 0.187in switches, it is advisable to use a needle nose plier to slightly bend the terminals forward for better contact. This can be demonstrated as below. For 0.250in switches, no bending is necessary.

When changing 0.250in switches to 0.187in switches, it is advisable to pinch the terminal close to allow for a better electrical connection.



TROUBLESHOOTING

This section is most useful by using a multi-meter. If you are unsure where to get one or use one, here is a great YouTube video to get you started: https://www.youtube.com/watch?v=bF3OyQ3HwfU

No Button Signal

Sometimes there might be an instance where a button is being pushed but it will not turn on or intermittently turns on. Try the following to see if this resolves your issue:

  • Ensure that the cable you made or purchased does not have a break in it by measuring the continuity.
  • Ensure that the cable you made or purchased has been plugged into the correct port or is wired to the correct terminal (correct orientation).
  • Ensure that the cable you made or purchased has the correct pinout. This can be performed by using a muti-meter and measuring the continuity for correctly wired pins.
  • Ensure that the switches are making good contact.

Latency

As there are no electronics, there is no additional latency.
